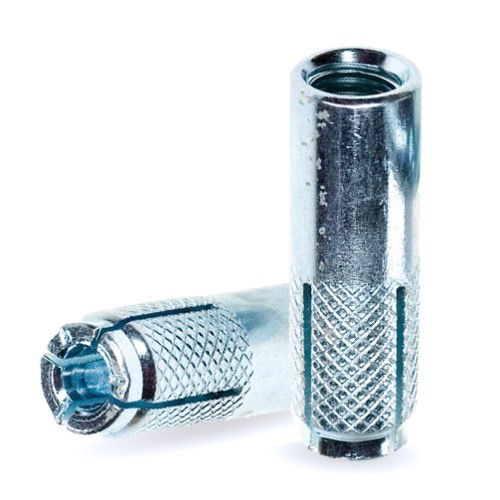

Drop-in Anchor, Bright Zinc
Material: Carbon Steel
Finish: Bright Zinc (BZ)
Designed for anchoring in concrete, Drop-In Anchors are internally machine screw threaded and have an expansion cone insert. A setting tool (required) drives the cone to expand the anchor inside the hole. Anchors with lips mount flush with the material's surface; if below the surface setting is desired, select an anchor without a lip. Use with cap screws, threaded rod, and other machine screw threaded fasteners. These shell type anchors can be used for overhead anchoring.
Size Outside
Diameter
Thread
Depth
Drill
DiameterEmbedment
Depth
Pullout
Load
1/4" x 25mm 7.5mm 5/16" 7.5mm 1" 500lbs 5/16" x 30mm 9.6mm 1/2" 9.6mm 1-3/16" 1,240lbs 3/8" x 40mm 11.6mm 5/8" 11.6mm 1-9/16" 1,360lbs 1/2" x 50mm 15.6mm 11/16" 15.6mm 2" 1,640lbs 5/8" x 65mm 19.4mm 7/8" 19.4mm 2-1/2" 3,760lbs 3/4" x 65mm 24.5mm 1-1/4" 24.5mm 3-3/16"
